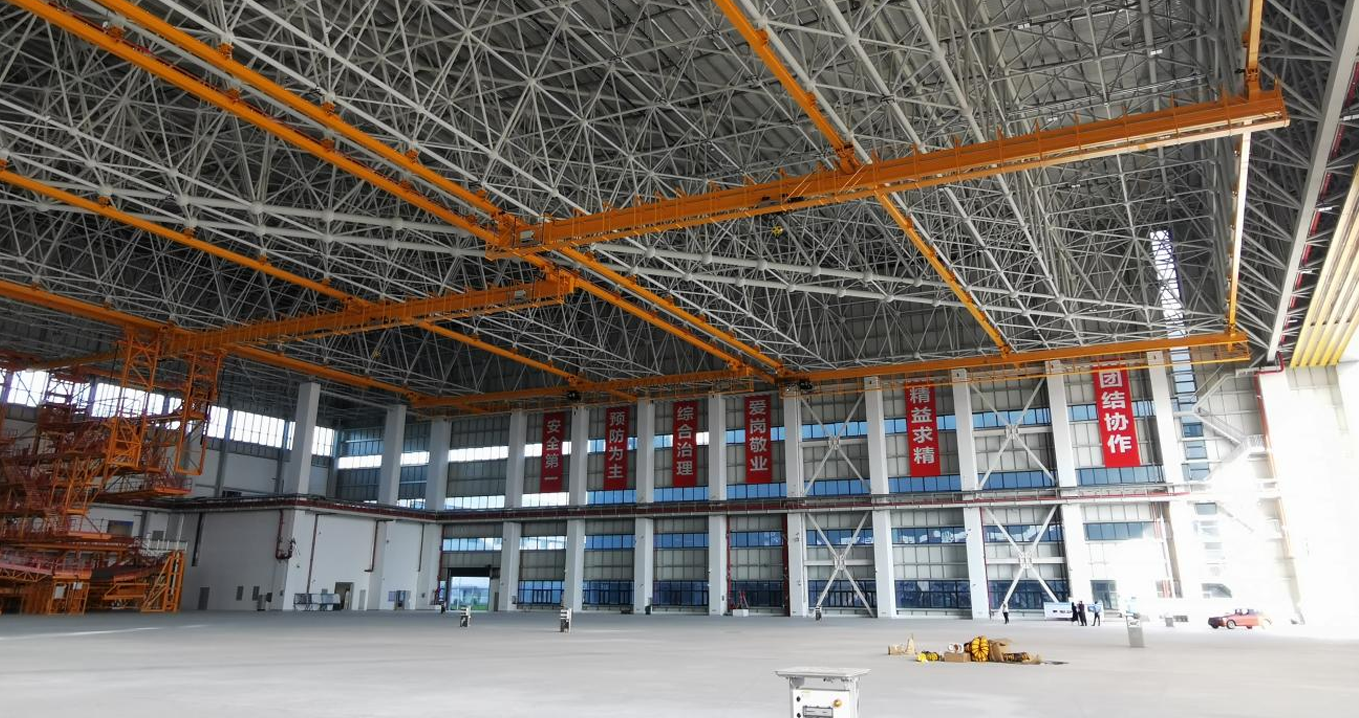

Multiple suspension points evenly share loads, reducing concentrated pressure on roof structures. Compatible with large-span grid roofs and lowers construction costs.
Combined with variable frequency drive and anti-sway system, the multi-point suspension design minimizes swing and delivers high positioning accuracy, protecting delicate aviation components during aircraft MRO work.
Span length can be adjusted by adding or removing suspension points, with a maximum span of 100 meters, perfectly suited for oversized aviation workspaces.
Multi-point restraint effectively prevents side bending and rail gnawing under eccentric loads. The crane resists deformation, offering long service life and enhanced operational safety for aircraft maintenance.

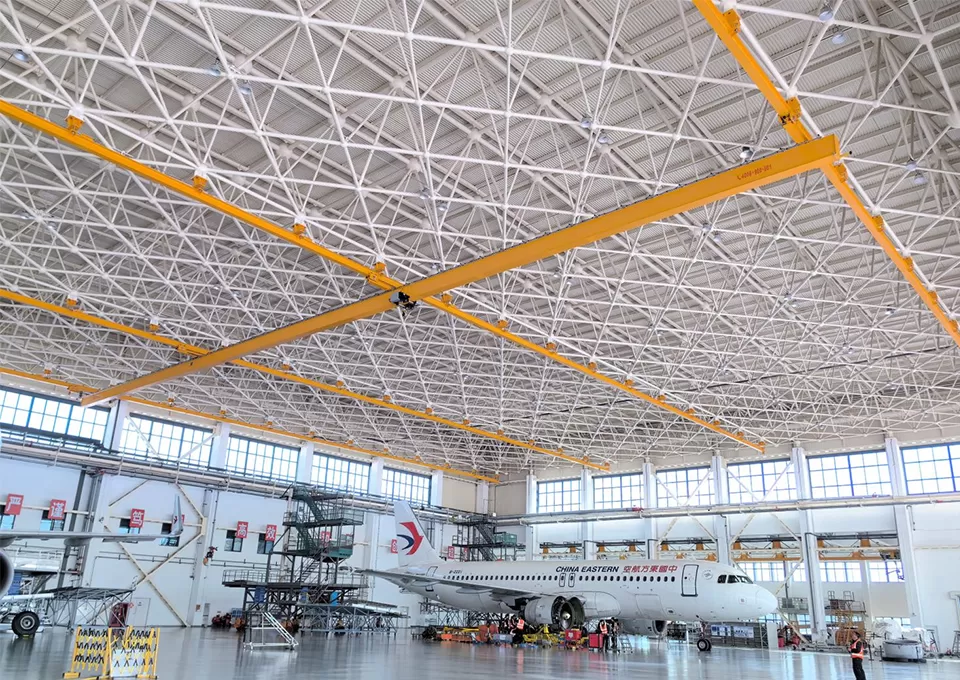

Designed for high-standard large-span facilities, widely deployed in aircraft MRO hangars and aviation manufacturing plants, supporting maintenance operations for all types of aircraft.

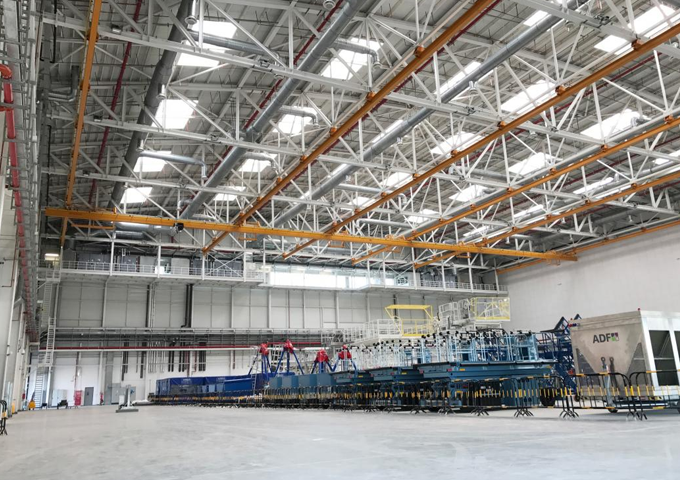

FACILITY: AIRBUS A330 MRO HANGAR
CRANE WITH 6 SUSPENSION POINTS AND WALKWAY
10t load capacity
18-12-12-12-18m span
76 m total span including girder overhangs
Single or double girder options available.
Designed for wide spaces, effectively covering large work areas.
Compact layout minimizes headroom requirements.
Significantly reduced self-weight leads to lower loads on the building structure.
