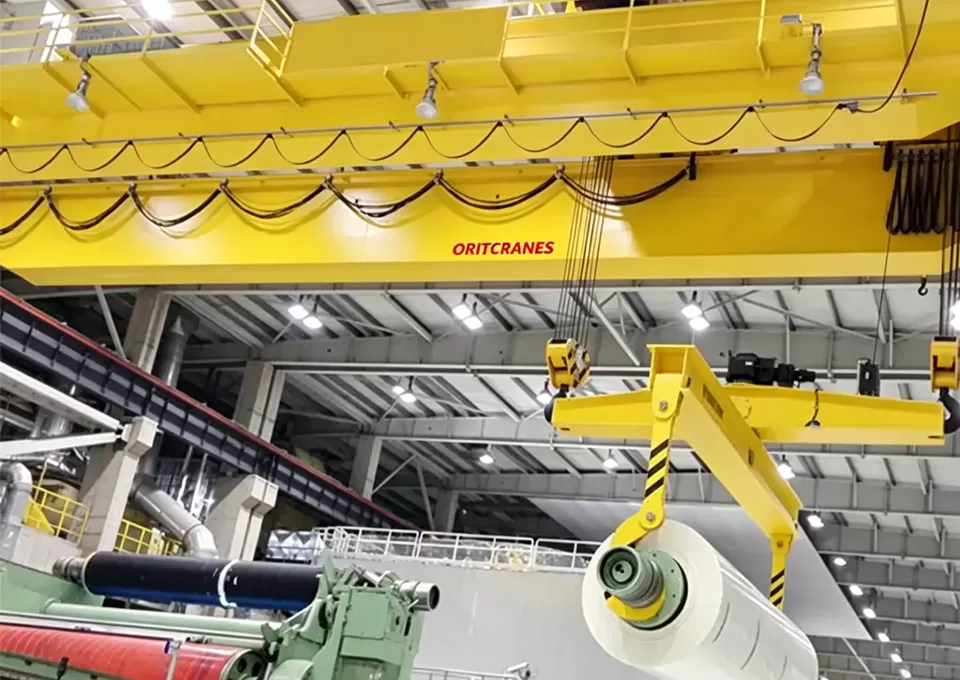

Dry End & Roll Handling Crane

Name: Dry End & Roll Handling Crane
Brand: ORITCRANES(JIANGSU) CO., LTD.

Dry End & Roll Handling Crane is a dedicated lifting and handling equipment for the dry-end section and finished paper rolls in paper mills. It is primarily used for equipment maintenance of the drying section, calender section, and reel section, roll component lifting, as well as finished paper roll transfer, warehousing, and shipping operations. The equipment features stable operation, precise positioning, and high efficiency, adapting to the continuous production of paper lines and automated paper roll logistics, combining both maintenance support and finished product handling functions.



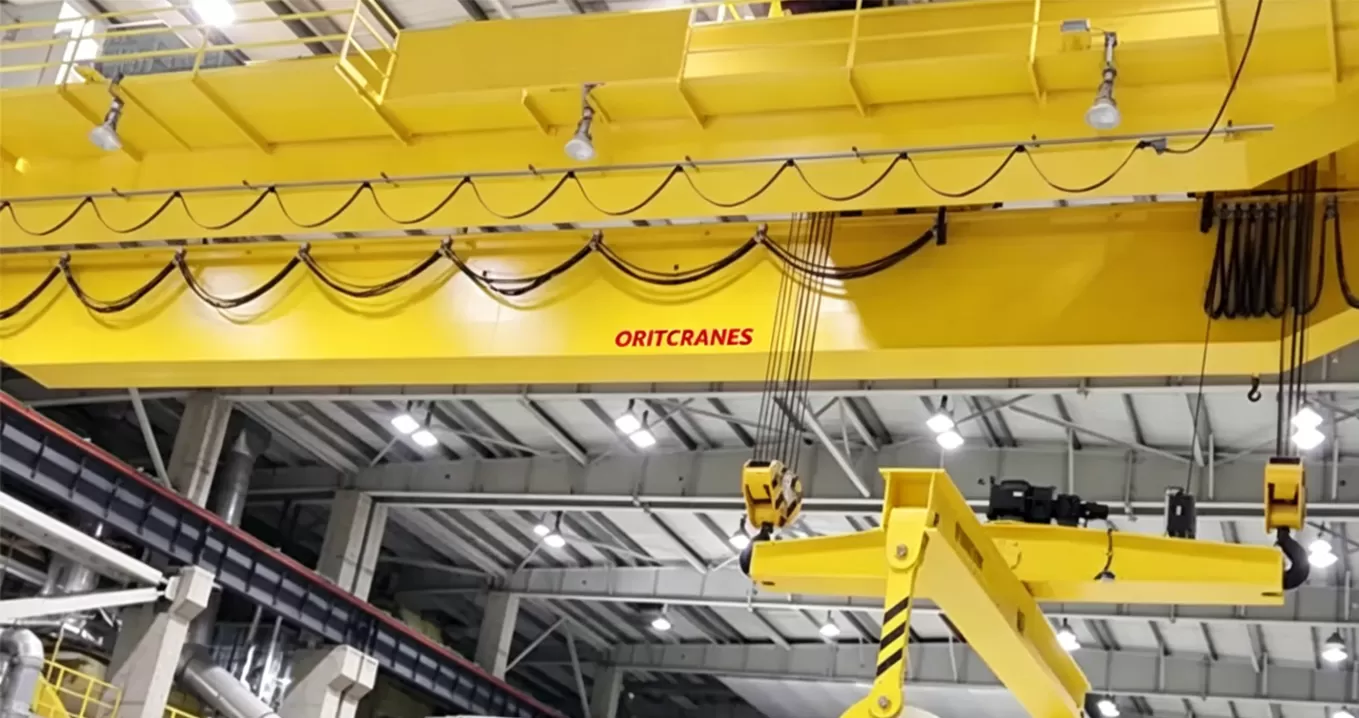

Main Components & Key Parts

Main Components:

Bridge, traveling mechanism, hoisting trolley, drive mechanism, electrical control system, operating device, safety protection devices, and dedicated paper roll spreader.

Key Parts:

Variable frequency drive hoist mechanism, high-precision positioning system, dedicated paper roll spreader, anti-sway control system, safety protection and redundant braking system.

Product Features & Description of Dry End & Roll Handling Crane

Lightweight European design, lower overall cost

Adopting optimized European design, the crane features light self-weight, low wheel load, and compact dimensions in gauge and height, reducing workshop steel structure and civil construction investment while improving space utilization.

Precise positioning & stable anti-sway, efficient and reliable operation

Equipped with variable frequency stepless speed control and an electronic anti-sway system, the crane achieves smooth and impact-free lifting and traveling, enabling precise roll installation and stable paper roll handling, improving operational efficiency and safety.

Multi-purpose design for both dry-end maintenance and paper roll handling

It can meet both dry-end equipment maintenance (such as drying cylinders and calender rolls) and, when paired with dedicated paper roll spreaders, handle paper roll transfer, stacking, and warehouse entry/exit, offering strong versatility and high return on investment.

Comprehensive safety protection, suitable for continuous production conditions

Features include overload limiting, travel limit switches, anti-collision protection, and dual redundant brakes. Designed for high-dust and continuous operation environments, it ensures low failure rates and stable production line performance.

Heavy-duty durability for continuous high-intensity operation

Built with heavy-duty structural design and reinforced transmission components, the crane can withstand frequent lifting and handling operations. Its high structural strength and fatigue resistance make it suitable for 24/7 continuous production in paper mills.

Case of Dry End & Roll Handling Crane

Project Name:
Package for a 300,000-ton/year Premium Paperboard Project

Project Summary:
Provided dedicated crane equipment for dry-end maintenance, automatic paper roll transfer, and warehousing, equipped with specialized paper roll spreaders and a positioning control system to achieve efficient, stable, and intelligent operation.
