Charging Crane

Name: Charging Crane
Brand: ORITCRANES(JIANGSU) CO., LTD.

Designed to withstand the extreme operating conditions inherent in steel production—including exposure to naked flame, dust and high heat — Oritcranes Charging Crane is equipped with hoisting and control mechanisms that feature advanced protective designs, ensuring long-term reliable operation in harsh environments.
Our charging cranes feature a double-girder design with options for either single or double trolley configurations. They are rated for duty classifications up to A7–A8, with lifting capacities ranging from 20+20t to 110+110t and spans from 18 to 30 meters.



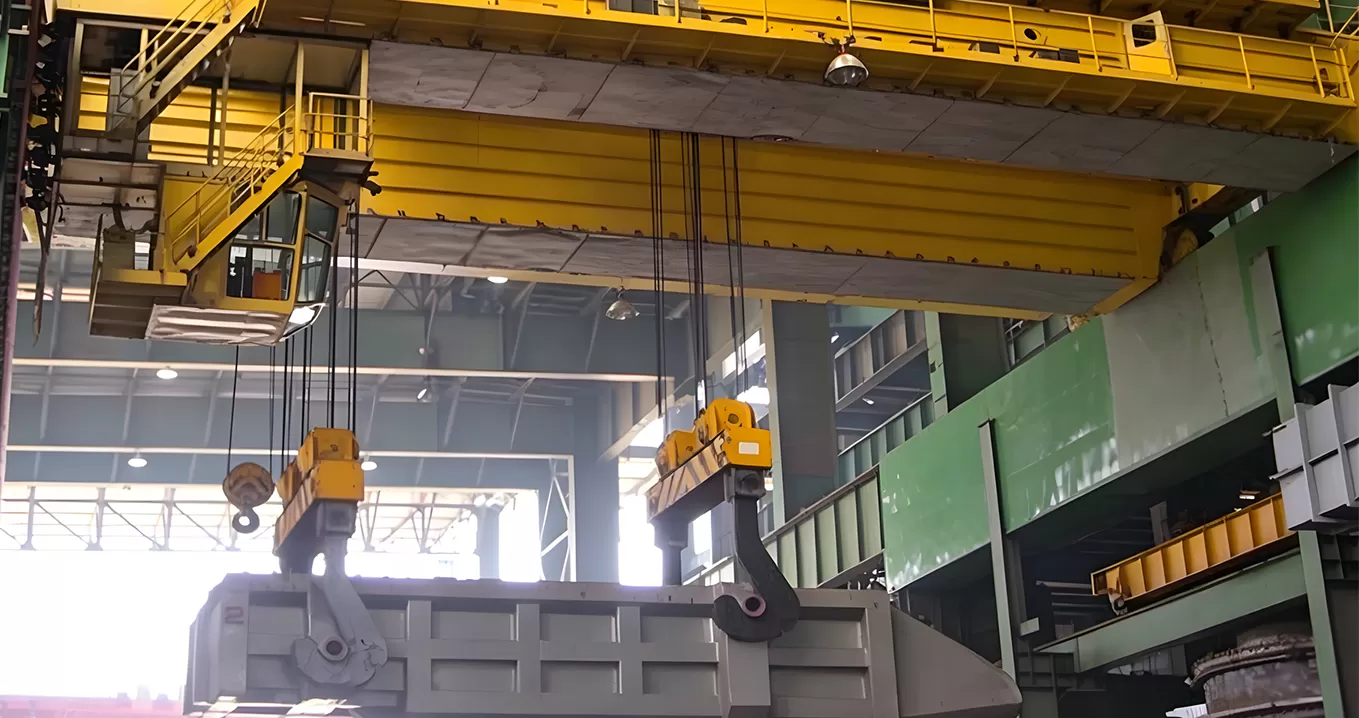

Components and Key Features of Charging Crane

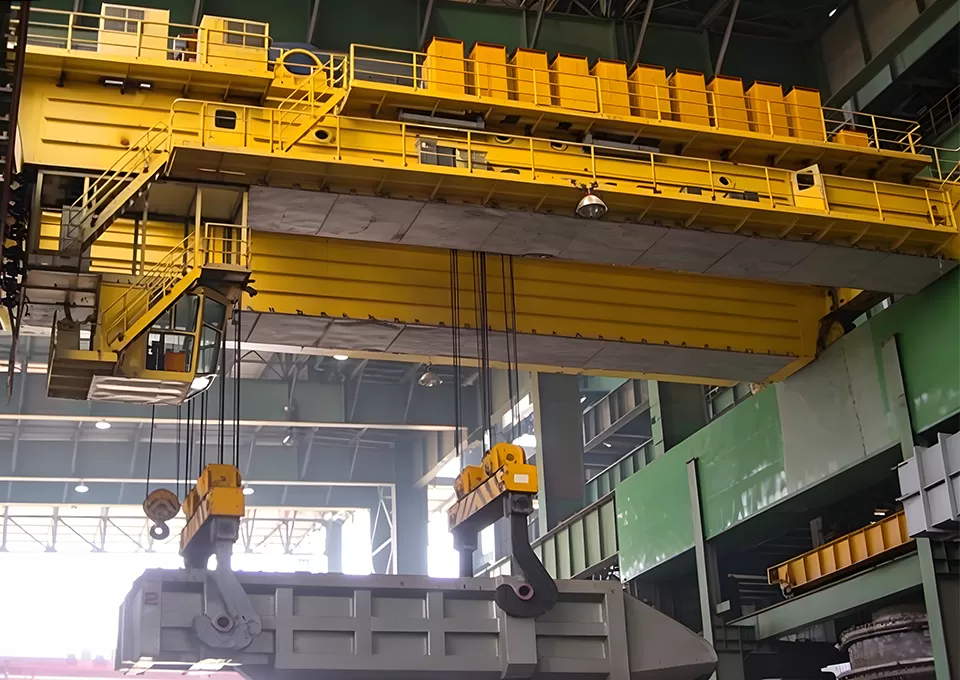

Charging Crane

Bridge structure, main and auxiliary hoisting mechanisms, trolley traversing mechanism, scrap box spreader, tilting device, electrical interlocking system, wind restraint and anti-sway device.

Key Features

Dual-reducer hoisting system, scrap box anti-detachment mechanism, synchronized tilting device, high-temperature resistant cables, overload and eccentric load protection devices.

Features and Benefits of Charging Crane

Dual-Hoist Coordination: Equipped with two independent hoisting mechanisms capable of synchronized lifting or individual operation for scrap box tilting, adaptable to the feeding requirements of converters or electric arc furnaces, increasing charging efficiency by 25%.
Structural Adaptability: The double-girder double-trolley model allows flexible adjustment of the main and auxiliary hook spacing, while the single-trolley model features a compact design to accommodate various plant layouts with uniform wheel load distribution.
Comprehensive Safety Protection: Includes scrap box locking device, wire rope slack sensor, heat-insulated and cooled electrical room, and operator cabin with air conditioning and radiation-resistant glass.
Operational Convenience: Supports manual and semi-automatic control modes with precise adjustment of tilting angles to accommodate different scrap box sizes, reducing manual intervention.
Exceptional Durability: Key components are manufactured from high-temperature resistant materials, with reinforced transmission mechanisms designed for high-frequency charging operations, ensuring extended maintenance intervals.
