Coil and Plant Handling Crane

Name: Coil and Plant Handling Crane
Brand: ORITCRANES(JIANGSU) CO., LTD.

The crane is rated for duty classifications A6–A7, with lifting capacities ranging from 10 to 64 tons. Equipped with electromagnetic spreader beams or C-hooks, it ensures stable operation under ambient temperatures and mildly corrosive environments, meeting the requirements for short-distance, high-frequency transfer operations within workshops. The Oritcranes coil and plant handling crane can be fitted with various lifting attachments based on the characteristics of the materials to be handled. It offers optional intelligent features such as load positioning, anti-sway control, and overload protection, which reduce handling time, minimize crane wear, extend equipment service life, and accelerate workflow efficiency.



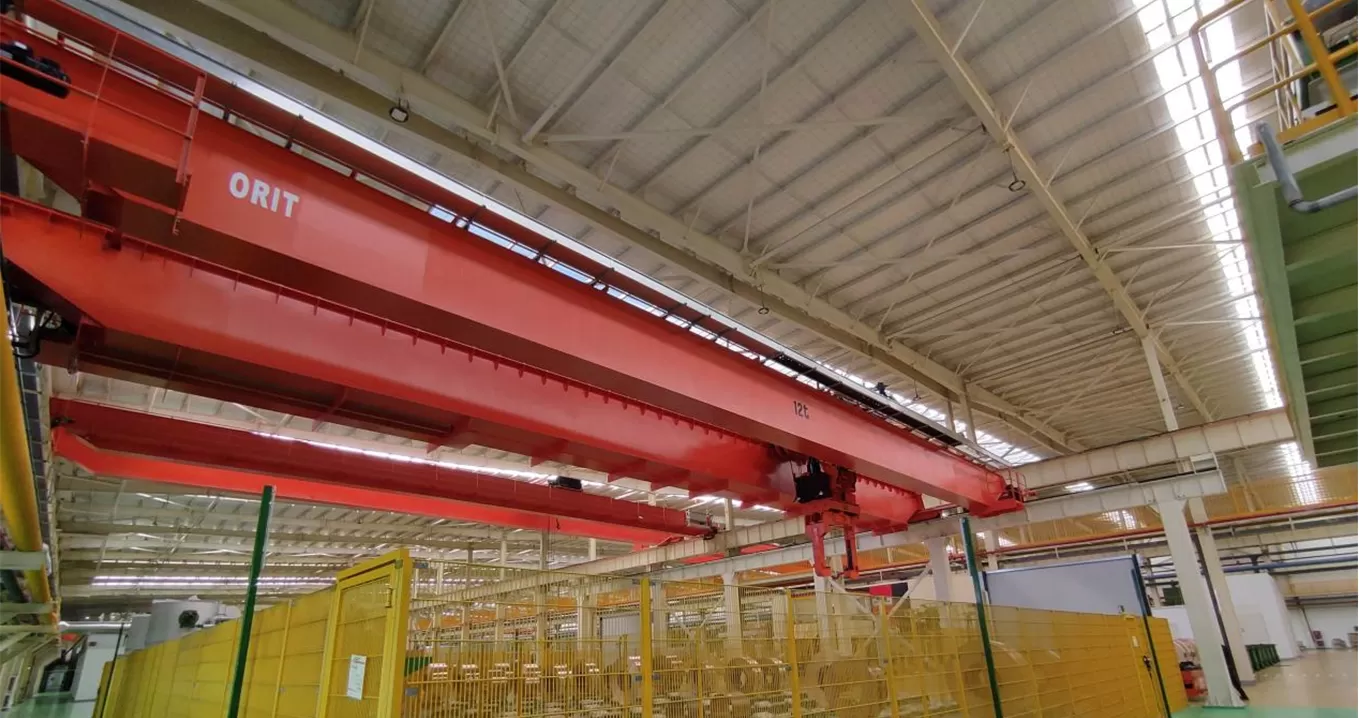

Components and Key Features of Coil and Plant Handling Crane

Core Components:

Bridge frame, trolley, hoisting mechanism, specialized coil handling attachments (electromagnetic spreader beam / C-hook), traversing mechanism, electrical control system, and anti-sway device.

Key Features:

Retractable electromagnetic spreader beam, coil damage-prevention clamps, variable frequency drive (VFD) system, precision positioning device, and load balancing sensors.

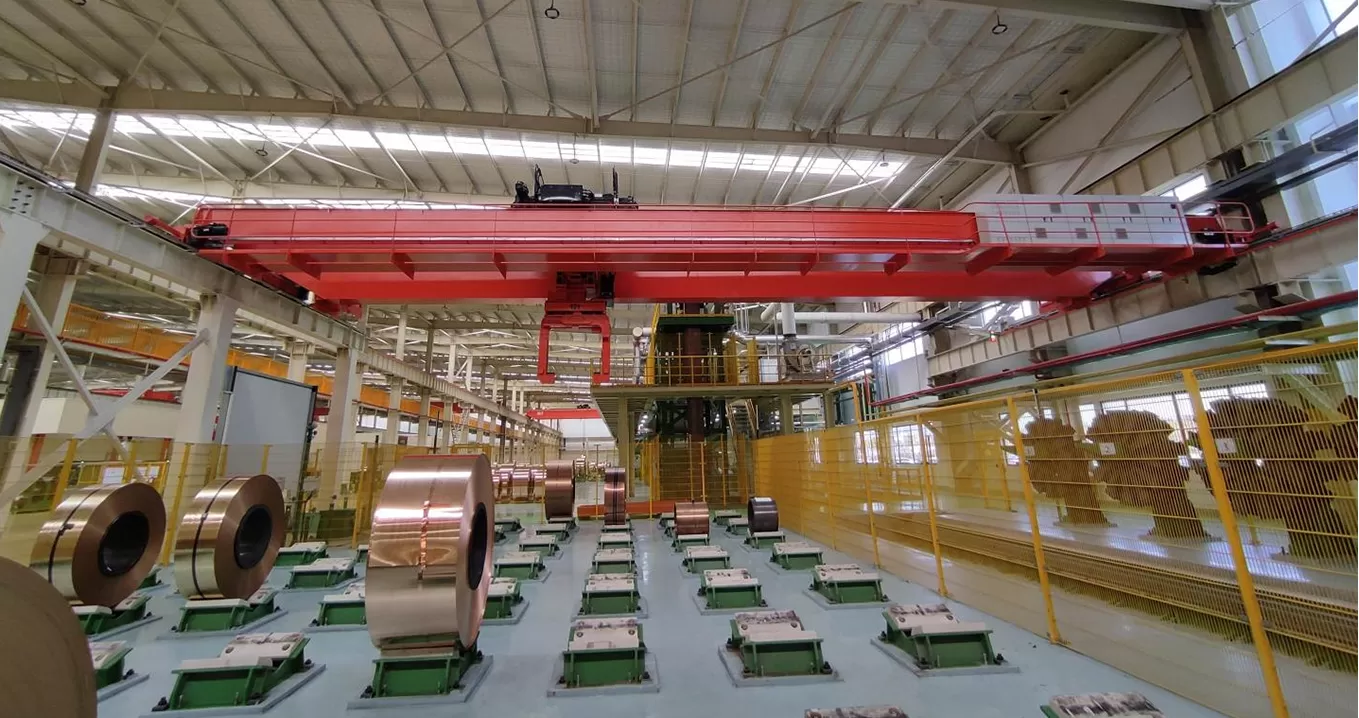

Product Features of Coil and Plant Handling Crane

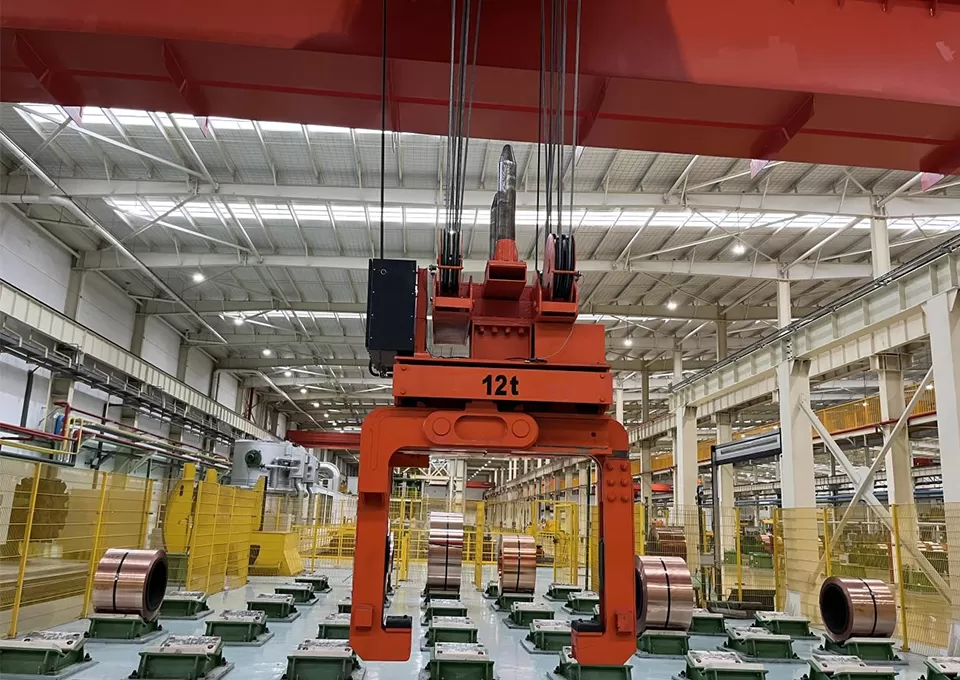

Specialized Lifting Attachment Design: The electromagnetic spreader beam is suitable for coils up to 650°C, providing stable magnetic force; the C-hook features a simple structure that prevents damage to coil end faces and accommodates various coil inner diameters.

Anti-sway and Damage Prevention: Combines flexible anti-sway technology with rigid guidance for smooth, impact-free operation. Protective pads are installed at contact points between the lifting attachment and coils to minimize damage risks.
Efficient Handling: Hoisting speeds of 8–15 m/min and traversing speeds of 60–80 m/min enable simultaneous handling of multiple coils, with stacking capacity up to 4–6 layers.
Intelligent Adaptability: Adjustable attachment spacing accommodates coil widths from 500 to 2000 mm. Equipped with a coil centering positioning system to improve stacking accuracy.
Easy Maintenance: Modular design allows easy disassembly of key components. The electrical system features waterproof and dust proof protection, making it suitable for dusty workshop environments.

By simplifying maintenance procedures, we reduce your routine maintenance costs. At the same time, we leverage smart features to minimize equipment wear and unplanned downtime, significantly extending equipment service life. Through these measures, we are able to provide more efficient and lower-cost equipment utilization solutions.
